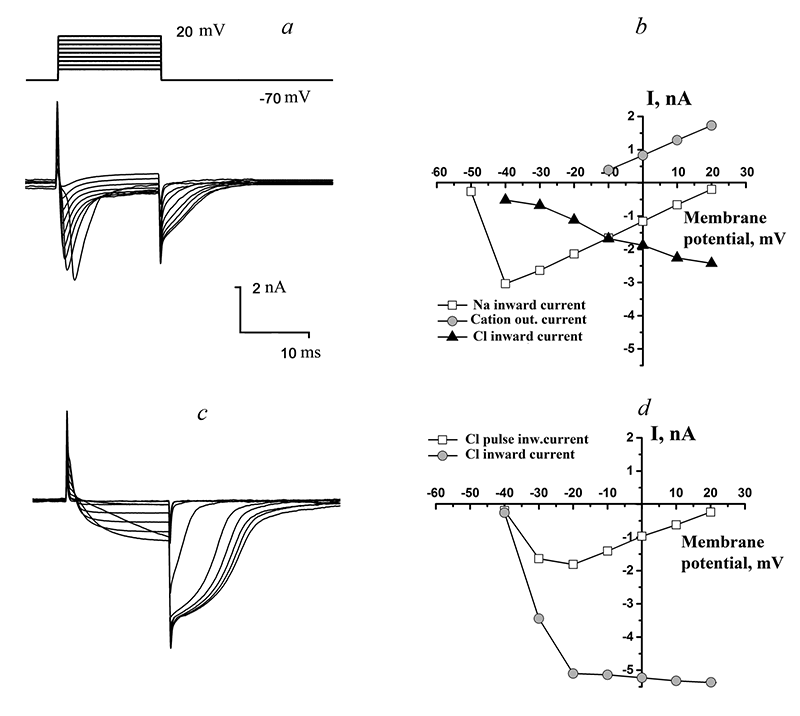

Figure 4. Integral currents of the Purkinje neuron and their voltage-current relationships in the case of solution B2 in micropipettes (cesium).
a — Integral currents in response on series of rectangular depolarization pulses from –60 to +20 mV on cell membrane with the H1 (sodium) solution ouside of the cell membrane.
b — Voltage-currents relationship of currents shown on the fig. 2,a.
c — Integral currents in response on series of rectangular depolarization pulses from –60 to +20 mV on cell membrane with the H2 (sodium-free) solution ouside of the cell membrane.
d — Voltage-currents relationship of currents shown on the fig. 2,c.
